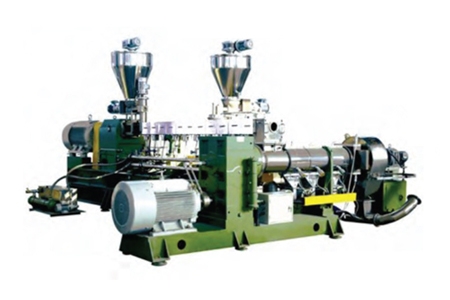

KP Two Stage Compounding Series
KP Series of extruders are compounding systems for pelletizing heat sensitive materials. The system consists of two stages, the first is a SHJ co-rotating twin screw extruder for melting and mixing the material, and the second series is a SJ single screw extruder for metering material into the pelletizer.
This system allows for better control of shearing and compounding the material without the overheating problems seen on a single screw extrusion system. It is best suited for PVC and other heat sensitive materials.
KP Series Two Stage Extruder Specifications (Twin/Single)
| Model | L/D | Screw Max Speed (rpm) | Motor Power (hp) | Capacity (lb/h) | |
|---|---|---|---|---|---|
| KP50/100 | SHJ-50 | 28-48 | 500/600 | 60/75 | 300-650 |
| SHJ-100 | 7-15 | 60/90 | 30/40 | ||
| KP63/150 | SHJ-63 | 20-48 | 500/600 | 100/120 | 650-1300 |
| SHJ-150 | 7-15 | 60/90 | 50/60 | ||
| KP72/180 | SHJ-72 | 20-48 | 500/600 | 150-175 | 850-1750 |
| SHJ-180 | 7-15 | 60/90 | 60/75 | ||
| KP92/200 | SHJ-92 | 20-48 | 400/600 | 375/725 | 1750-3300 |
| SHJ-200 | 7-15 | 60/90 | 75/100 | ||
| KP92/200 | SHJ-133 | 20-48 | 400/600 | 565/940 | 2800-5000 |
| SJ-250 | 7-15 | 60/90 | 90/120 | ||
