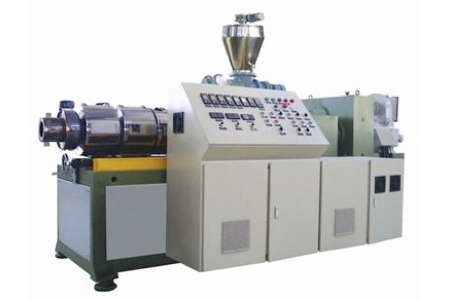

SJZ Conical Twin Screw Series
SJZ Series is a conical twin screw extruder. It is mainly used in the production of PVC pipe and profiles. The system is made up of a conical twin screw extruder, vacuum forming machine, haul off machine, cutter, and packing system. The extruder and haul off machine are interconnected for continuous process control. Below is a chart of available sized systems.
| Model | SJZ-45/100 | SJZ-55/100 | SJZ-65/132 | SJZ-80/143 | SJZ-92/188 |
|---|---|---|---|---|---|
| Screw Diameter (mm) | 45/100 | 55/110 | 65/132 | 80/143 | 92/188 |
| Screw Max Speed (rpm) | 37 | 40 | 35 | 35 | 35 |
| Screw Length (mm) | 985 | 1200 | 1480 | 1850 | 2800 |
| Main Motor Power (kw) | 15 | 22 | 40 | 67 | 110 |
| Output (kg/h) | 70 | 150 | 280 | 400 | 550 |
| Center Height (mm) | 1000 | 1000 | 1050 | 1050 | 1200 |
| Weight (kg) | 2600 | 3500 | 4000 | 5000 | 7000 |
| Dimensions (mm) | 3200x1020x2400 | 3500x1050x2157 | 4230x1520x2450 | 4750x1550x2460 | 6700x1560x2820 |
